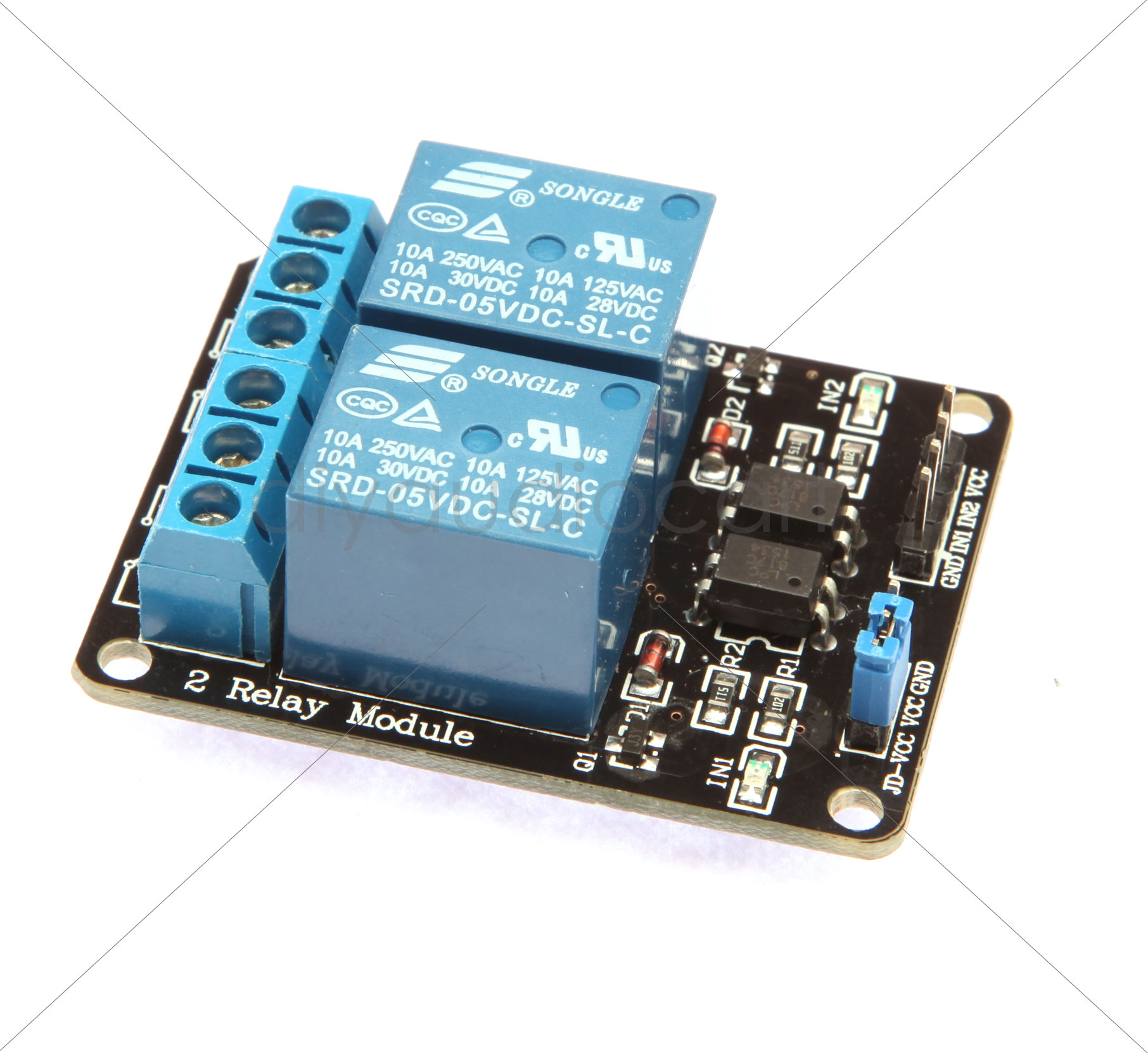

Relay Module – 2-Channel 5V with optocoupler for Arduino PIC ARM DSP AVR

Relay Module – 2-Channel 5V with optocoupler for Arduino PIC ARM DSP AVROverview:This is a 5V 2-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Micro-controller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).If you have ever had a project that required an interface with a high power device that needed AC or DC voltage and high current levels you have probably already discovered that attempting to control those devices directly with your Arduino, Raspberry PI, or other Microcontroller/Microprocessor can be a real challenge. This board is designed to interface easily with your 5V IO's without consuming much current on your IO pins. Technical Specifications:Rated current: 10ACoil power: 0.36WContact switch voltage: 220VACRelay contact capacity 250V10A5V relay signal input voltage range: 0-5VVCC power to the systemJD-VCC relay in the power supply. JD-VCC and VCC can be a shortedIN1-IN2: relay control portSize: 50.6mm (L) x 38.8mm (W) x 20mm (H)Weight: 30gFeatures:5V 2-Channel Relay interface board, and each one needs 15-20mA Driver CurrentEquiped with high-current relay, AC250V 10A ; DC30V 10AStandard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)   Indication LED’s for Relay output statusOpto-isolatorApplications:Microcontroller based switchingRoboticsInterfacing high power devicesDiagram:Projects:Raspberry Pi controlled garage door
