DAC – Urumi – High-end Speakers Kits

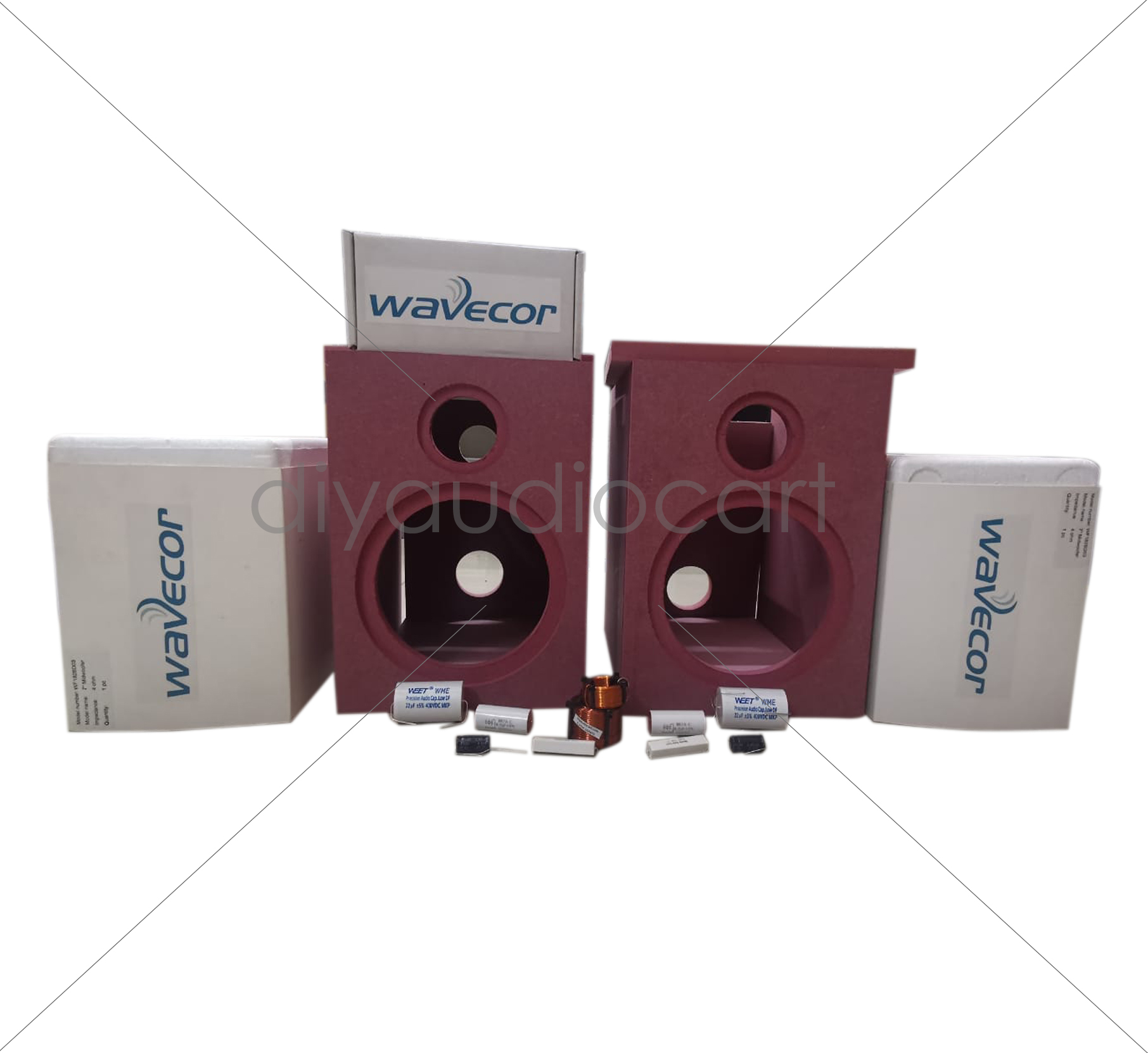

DAC – Urumi – High-end Speaker Kit  Overview:Build your own high-end Book-shelf speaker with wavecor Woofer and tweeter. This kit includes nearly everything to build a pair speaker, including: a knock-down cabinets, drivers, ports, and crossover components. Product Description:The balanced drivers of wavecor has clear and transparent sounding. The kits can go low to 45Hz. The speakers has dynamic sound. Woofer Wavecor  WF182BD03 is a 7″ paper cone midwoofer that utilizes balanced drive technology and is designed for demanding bass. and midrange.   The tweeter is Wavecor TW030WA01 is a high performance 30 mm textile dome tweeter that works extremely well for most demanding high frequency audio applications. The low resonance frequency and high power handling makes TW030WA01 the ideal tweeter for 2-way speakers, where 1″ tweeters will not do.The TW030WA01 offers a smooth and extended frequency response. The optimized textile dome ensures wide dispersion and low distortion. Distortion is further reduced by efficient venting of the chassis and voice coil former. Product Specifications:Woofer diameter        :  7″Power handling          : 20 – 100 WattsImpedance                 : 5 OhmsFrequency response  :  45-20khz HzSensitivity                   :  88 dB 1W/1mspeaker type               :  BookshelfCabinet Dimensions   :  8.5W * 12H * 8.5DCrossover                  :  2500hz XoverInput Rating                :  ConfigurationColor                           :  unfinished – MDFPort                            :   2″W * 10″D inch CROSSOVER DESIGN:Frequency Response:  Kit Includes:S.noPart NoModel NoDescriptionPcs1WooferWF182BD03Mid/Woofer, 7″, die cast chassis, paper cone, 4 ohm22TweeterTW030WA01Tweeter, 30mm, dual neodymium, w/o ferro fluid, 4 ohm13L1DAC-IND-1.10-18DAC – 1.10mh – Air Core Inductor Crossover Coil – 18 AWG24L3DAC-IND-0.22-18DAC – 0.22mh – Air Core Inductor Crossover Coil – 18 AWG25L2DAC-IND-0.10-18DAC – 0.1mh – Air Core Inductor Crossover Coil – 18 AWG26R1BAGR – 2.4Bevenbi – 2.4 Ohm 10W Precision Audio Grade Resistor27C1MKPA – C – 8.2Bevenbi – MKPA – C- 8.2UF 250V metallized polypropylene film capacitor28C2BNP – 12.00Bevenbi – 12.00uF 100V Electrolytic Non-Polarized Crossover Capacitor29C3WME – 22uFWEET WME – 22 uf 400V Metallized Polypropylene Film Capacitor210––MDF – Wood Work211–– Speaker Cabinet Port Tube 2″ ID2  Note: Screws, binding posts, and speaker wire are not included.
