Dayton Audio LBB-5EB Expansion Board for LBB-5 and LBB-5S Battery Boards

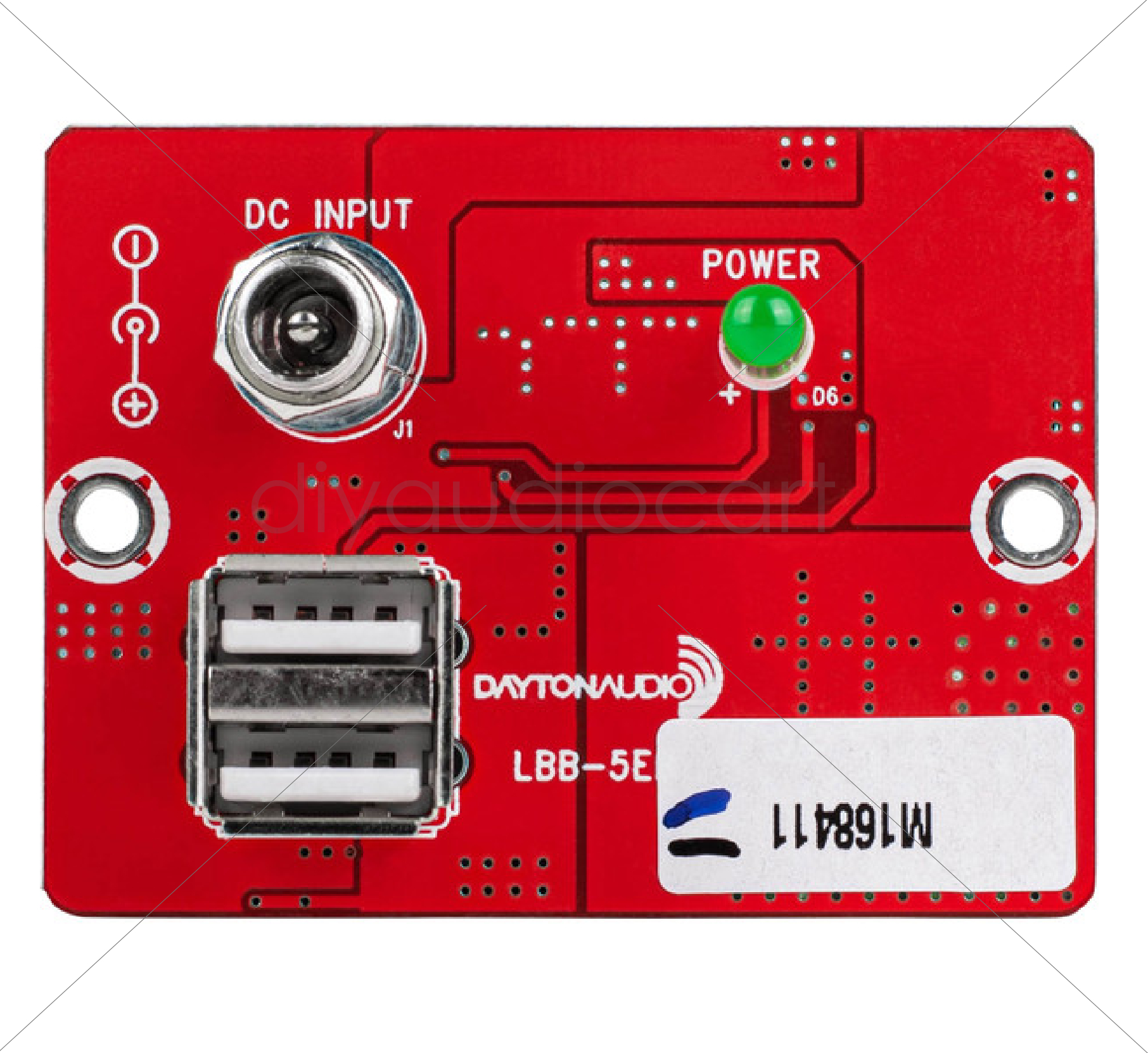

Dayton Audio LBB-5EB Expansion Board for LBB-5 and LBB-5S Battery Boards Overview:Extend your power input and add 5 VDC USB output to 5-cell Dayton Audio battery boards with the LBB-5EB expansion board. It works with Dayton Audio LBB-5 and LBB-5S 5-cell lithium battery holder/charging boards. Key Features:Adds external charging input/output capabilities5 VDC 2A output charging power for smartphonesPlugs directly into the LBB-5 and LBB-5S with included 6-pin 8″ wiring harnessStandard 2.1 x 5.5 mm DC coax jack for power input Dayton Audio LBB-5EB Expansion Board for LBB series Battery BoardsThe Dayton Audio LBB-5EB expansion board gives you an extra 2.1 x 5.5 mm power input jack, plus two USB-A ports for charging smartphones, tablets, and other 5 VDC devices. This enables you to charge LBB series Dayton Audio battery boards buried in a project, plus power or charge 5 VDC devices.Mount the expansion board externally by drilling a 0.31″ hole for the power jack, 0.19″ hole for the LED and cutting a 0.62″ H x 0.58″ W hole for the USB ports. You’ll also need two standoffs for the two 0.14″ mounting holes that are spread 2.12″ apart to center. Standoff height will depend on your panel thickness. The small 2.4″ x 1.8″ board includes a 6-pin 8″ wiring harness that plugs directly J-28 socket on the LBB-5 battery board, J-9 on the LBB-5S battery board, J-1 on the LBB-6S battery board, and J-5 on the LBB-3v2 battery board. Highlights:Adds many features with one simple connectionPush button on/off switch puts amp in standby mode to save powerTwo USB ports have 2A combined charging capability for your media devicesAUX-in 3.5 mm jack for connecting amp to non-Bluetooth sourcesIncludes 19″ interconnect cable for quick hook upGround noise isolation eliminates unwanted soundsTwo LED status indicators; red and green Dayton Audio Manufacturer Warranty
