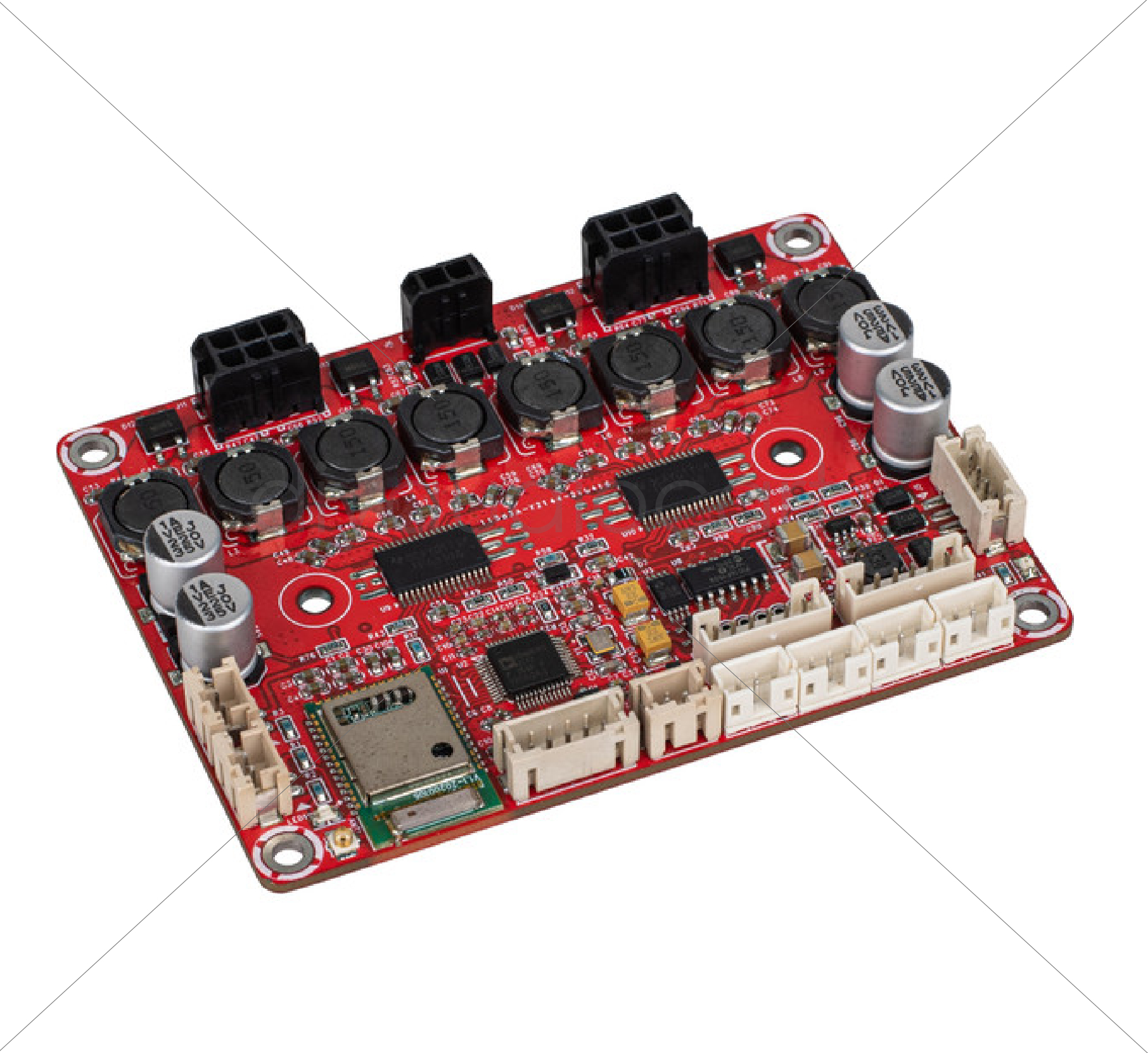

Dayton Audio KABD-430 4 x 30W All-in-one Amplifier Board with DSP and Bluetooth 5.0

Dayton Audio KABD-430 4 x 30W All-in-one Amplifier Board with DSP and Bluetooth Overview:Dayton Audio KABD-430 combines a 4 x 30W amp board, Bluetooth 5.0, and an ADAU1701 digital signal processor all in one amp board. This enables you to customize your next DIY audio project’s sound using SigmaStudio software and Dayton Audio ICP1 or KPX Bluetooth programmer. Key Features :All-in-one board design reduces space needed for audio DIY projectsWire harnesses make installation quick and simple with no soldering required — includes power, Bluetooth reset button and two sets of speaker cablesSeparate ports for powering by battery or direct DC input from 12 to 24V power sourceProgram with SigmaStudio software and Dayton Audio ICP1 or KPX boards (sold separately)Efficient 4 x 30W of power from the two TPA3118 amp chips delivers clean powerful signal for creating up to 4-channel audio projects5-year Dayton Audio warranty Technical Specification:Power output (w/ 24 VDC power supply): 2 x 30W @ 8 ohmsSNR: 96 dB 2 x 30W @ 8 ohm, THD N=1%, 25.8 dB, A-weightingTHD N: 0.08% 10W @ 8 ohm 1 kHz 25.8 dBFrequency response: 20 to 20,000 Hz (±3 dB)Impedance: 3.2-8 ohmsRecommended power supply: 12 to 24 VDC, 3ABoard mounting holes center to center spacing: 3.32″ x 2.4″ (84 x 61 mm)Hole diameter: 0.14″ (3.5 mm)Dimensions: 3.6″ L x 2.7″ W x 0.9″ H Product DetailsBrandDayton AudioModelKABD-430Part Number325-430UPC848791008191Unit of MeasureEachWeight0.3  Product SpecificationsBoard Type4 Channel AmpPower (RMS/Channel 8 ohms)26 – 50 WattsSpecial FeaturesBluetooth-Bluetooth with aptX Dayton Audio KABD-430 User ManualDayton Audio KABD-430 Quick Reference GuideDayton Audio KABD Series SigmaStudio Programming GuideDayton Audio KABD Series SigmaStudio Example Projects
