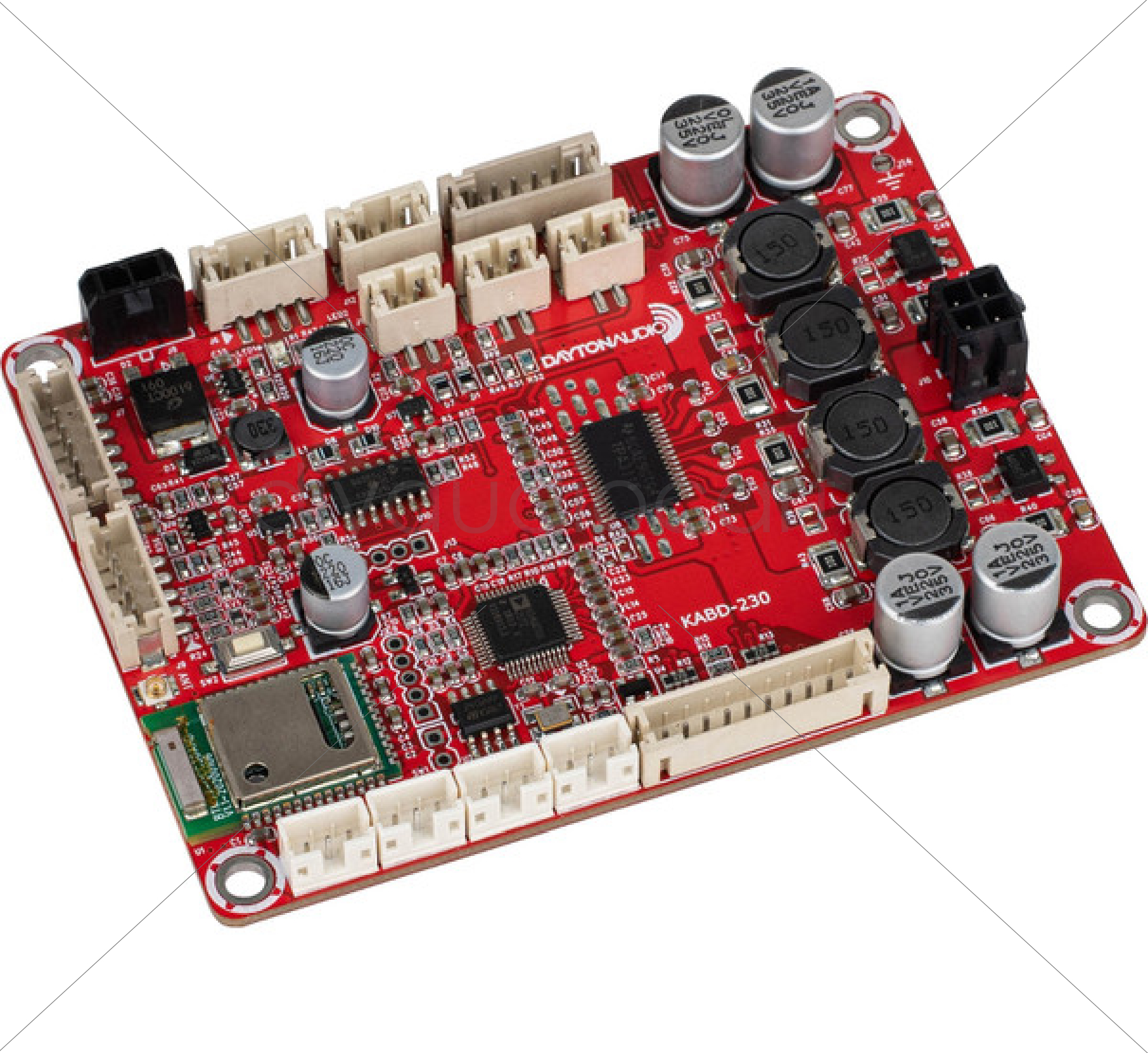

Dayton Audio KABD-230 2 x 30W All-in-one Amplifier Board with DSP and Bluetooth 5.0

Dayton Audio KABD-230 2 x 30W All-in-one Amplifier Board with DSP and Bluetooth 5.0 Overview:Dayton Audio KABD-230 combines a 2 x 30W amp board, Bluetooth 5.0, and an ADAU1701 digital signal processor all in one amp board. This enables you to customize your next DIY audio project’s sound using SigmaStudio software and Dayton Audio KPX or ICP1 Bluetooth programmer. Key Features:All-in-one board design reduces space needed for audio DIY projectsPlug-N-Play JST-PH and Molex Mini-Fit Jr wire harnesses make installation quick and simple — includes power, Bluetooth reset button and speaker cablesSeparate ports for powering by battery or direct DC input from 12 to 24V power sourceProgram with SigmaStudio software and Dayton Audio ICP1 or KPX boards (sold separately)Efficient 2 x 30W of power from the TPA3118 amp chip5-year Dayton Audio warranty Technical Specification:Power output (w/ 24 VDC power supply): 2 x 30W @ 8 ohmsSNR: 96 dB 2 x 30W @ 8 ohm, THD N=1%, 25.8 dB, A-weightingTHD N: 0.08% 10W @ 8 ohm 1 kHz 25.8 dBFrequency response: 20 to 20,000 Hz (±3 dB)Impedance: 3.2-8 ohmsRecommended power supply: 12 to 24 VDC, 3ABoard mounting holes center to center spacing: 3.32″ x 2.4″ (84 x 61 mm)Hole diameter: 0.14″ (3.5 mm)Dimensions: 3.6″ L x 2.7″ W x 0.9″ H Product DetailsBrandDayton AudioModelKABD-230Part Number325-106UPC848791008115Unit of MeasureEachWeight0.25 Product SpecificationsBoard Type2 Channel Stereo AmpPower (RMS/Channel 8 ohms)26 – 50 WattsSpecial FeaturesBluetooth-Bluetooth with aptX Dayton Audio KABD-230 User ManualDayton Audio KABD-230 Quick Start Wiring GuideDayton Audio KABD Series SigmaStudio Programming GuideDayton Audio KABD SigmaStudio Example ProjectsDayton Audio Manufacturer Warranty
